"Using RAYSHAPE DLP 3D printers for dental 3D printing has increased the speed and efficiency of Qlab. The RAYSHAPE team provides easy-to-use equipment, an open material system, and instantly responsive service."
30 per print, 90 min
Full-plate printing time 73 minutes
Full-plate printing time 109 minutes
Full-plate printing time 122 minutes
Highly Accurate
Consistent precision throughout the entire 3D printing manufacturing process.
Extremely Smooth Surface
Adopting low stripping force and precise layering processes, combined with pre-adjusted anti-aliasing functions, ensures that the surfaces of more than 20 dental applications, such as implant models and temporary teeth, are extremely smooth and have a delicate tactile feel.
Clear Details
Utilizing high-precision light and pre-optimized 34.4um pixel size, the Edge E2 from the dental 3D printing companies provides clear pathological details, bringing more precise treatment and design solutions to dentists and technicians.

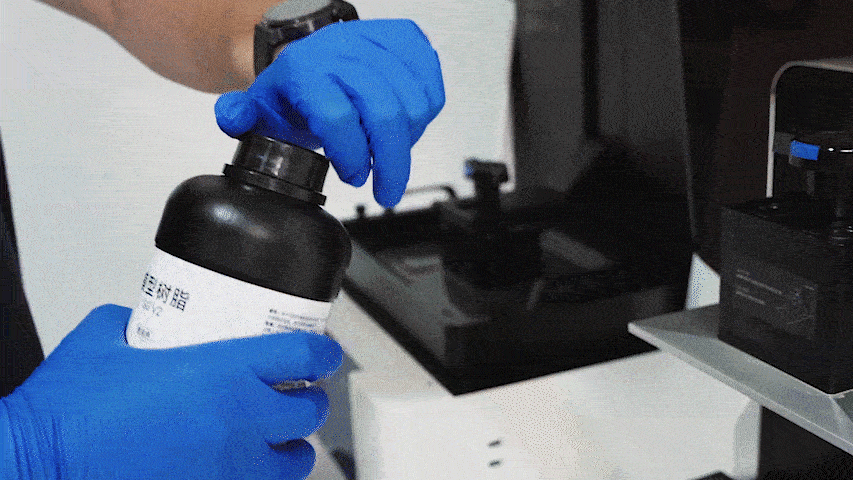

Printing Process of Edge E2

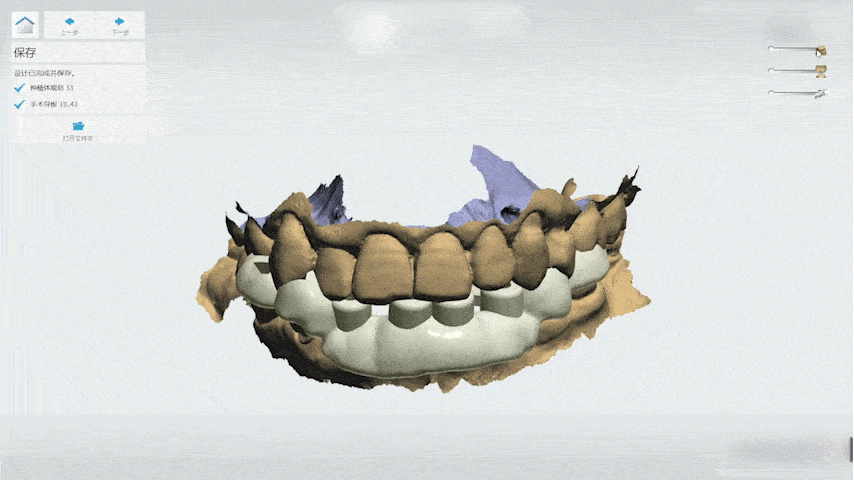

Efficient Chairside Digitalization: The Full Process of 3D Printing Dental Implant Guides
Dental Professional 3D Printer
Easy to use, one-touch operation
Ultra-fast curing, stable and reliable

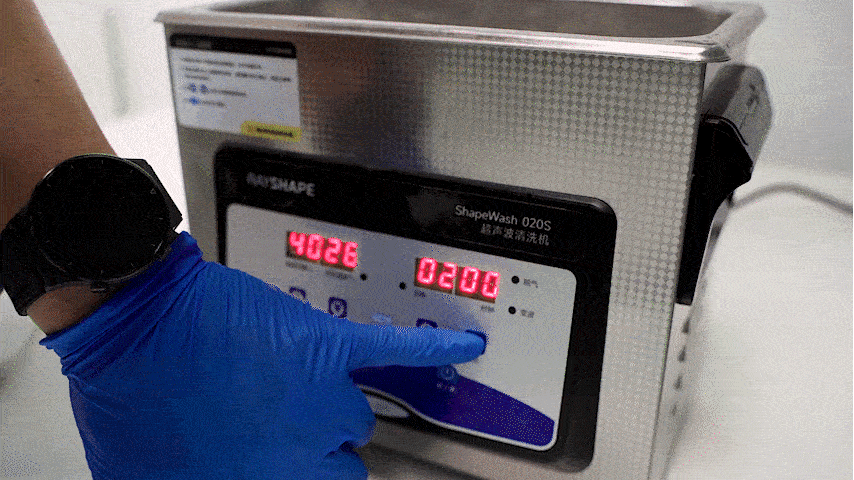

Rapid cleaning, efficient and intelligent
Edge E2 Dental 3D Printer Specification
| Core Parameters | |
| Build volume | 190 × 120 × 190 mm |
| Pixel size | 34.4 μm |
| Technology | LCD |
| Dynamic layer thickness | 0.05 ~ 0.1 mm |
| Hardware | |
| LCD Screen | 9.25" 6K monochrome screen |
| Light source | LED light source |
| Wavelength | 405 nm |
| Resolution | 5760 × 3600 pixels |
Materials | |
Available materials | ShapeMaterials Dental Series & 100+ Prevalidated Materials |
| Software | |
| Control System | Self-developed Master O.S. |
| Language | English, Chinese |
| Slicing software | ShapePanel |
| Operating system | Windows 7/8/10/11 |
File format (Input) | .stl, .obj |
File format (Output) | .rs, .shape |
| Size & Weight | |
| Device dimension | 390 x 420 x 550 mm |
| Net weight | 31 kg |
| Package size | 540 x 540 x 900 mm |
| Package weight | 45 kg |
Over 100 materials are available.
Experience the wide choice of materials on the market with broad access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with recently validated 3D print materials thanks to RAYSHAPE's Open Material Architecture.
