38 per print, 150 min
16 per print, 45 min
18 per print, 100 min
30 per print, 90 min
102 per print, 24 min
40 per print, 100 min
Achieving High-Precision Model Manufacturing
The scanning matching accuracy reaches 94.84%*, and the accuracy of re-scanning within 30 days can reach more than 90%.*
(*This data is based on the resin and process parameter package officially certified by RAYSHAPE)

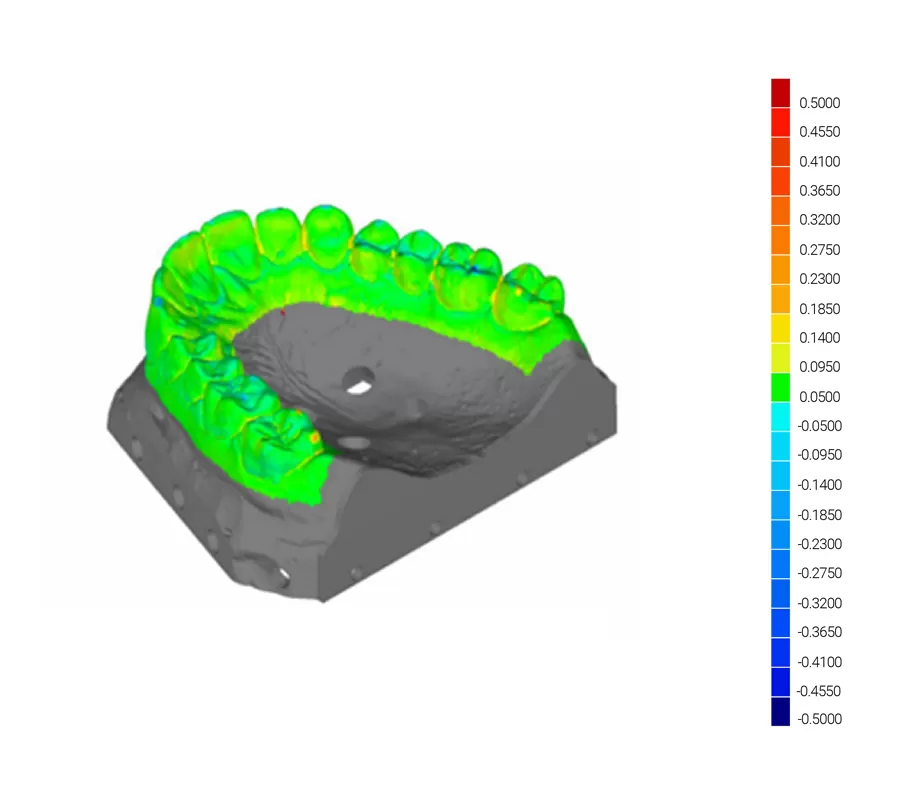

Precision Scanning Map
The larger the green area, the closer the entire model is to the real data.
The dental industry generally requires the green data area to reach 80%, and the RAYSHAPE solution can reach more than 90%.

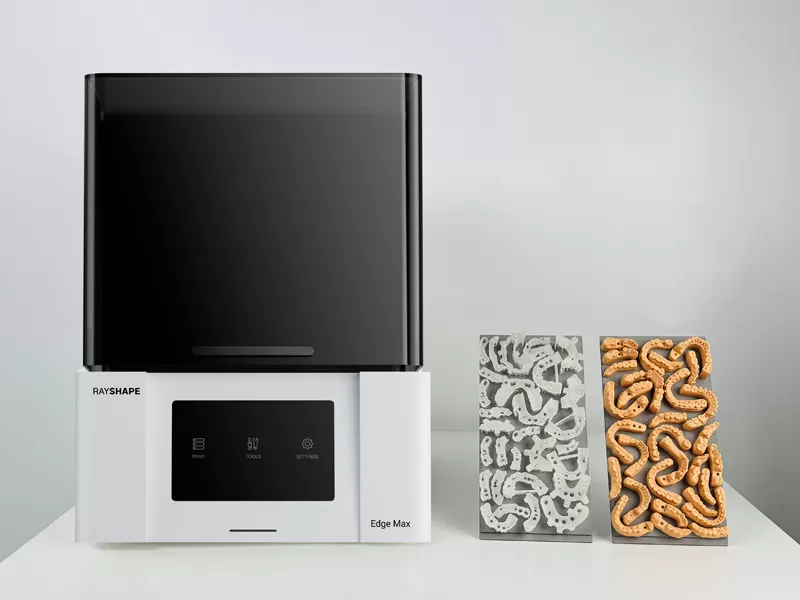

Edge Max Dental 3D Printer Specification
| Core Parameters | |
| Build volume | 290 × 160 × 190 mm (11.42 × 6.30 × 7.48 in) |
| Pixel size | 46 μm |
| Technology | LCD |
| Dynamic layer thickness | 0.05 ~ 0.1 mm |
| Printing speed | Up to 36 mm/hr |
| Materials | |
| Available materials | ShapeMaterials Dental Series & 100+ Prevalidated Materials |
| Material packaging | 1kg 2.5kg |
| Hardware | |
| LCD Screen | 13.6-inch 7k |
| Light source | LED light source |
| Wavelength | 405 nm |
| Resolution | 6480 × 3600 pixels |
| Touchscreen | 10-inch |
| Connectivity | USB2.0, Wi-Fi(2.4GHz), Ethernet |
| Input | 100~120 VAC，4.5A，50/60Hz 200~240 VAC，2.1A，50/60Hz |
| Rated power | 500 W |
| Software | |
| Control System | Self-developed Master O.S. |
| Language | English, Chinese |

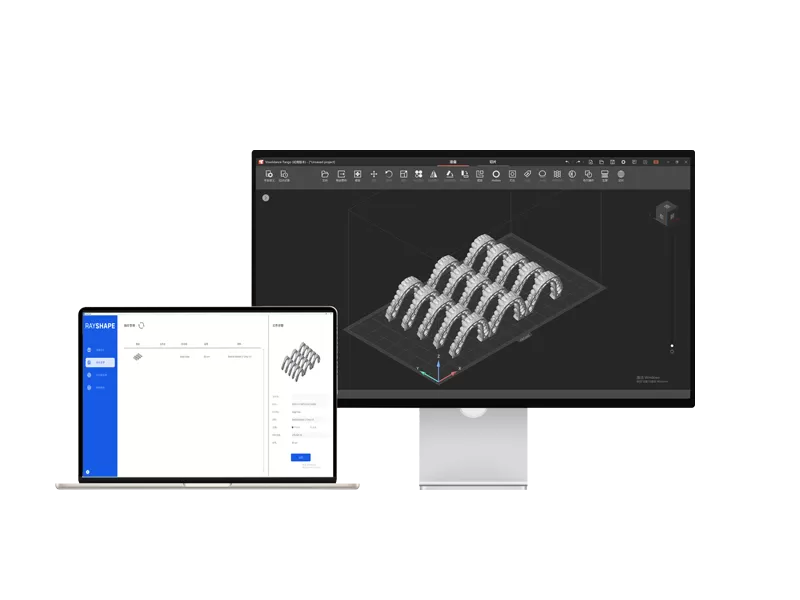

| Slicing software | ShapePanel |
| Operating system | Windows 7/8/10/11 |
| File format (Input) | .stl, .obj |
| File format (Output) | .rs |
| Advanced functions | Support editing, automatic repair, model cutting, hollowing, perforating, labeling |
| Wireless printing | Deliver printing tasks to specified printer in LAN environment via "One Click" operation |
| Cluster management | Manage the printing tasks of multiple devices in LAN environment |
Size & Weight | |
| Device dimension | 480 x 500 x 650 mm |
| Net weight | 39 kg |
| Package size | 600 x 600 x 1000 mm |
| Package weight | 60 kg |
Large-format Orthopedic-specific 3D Printer

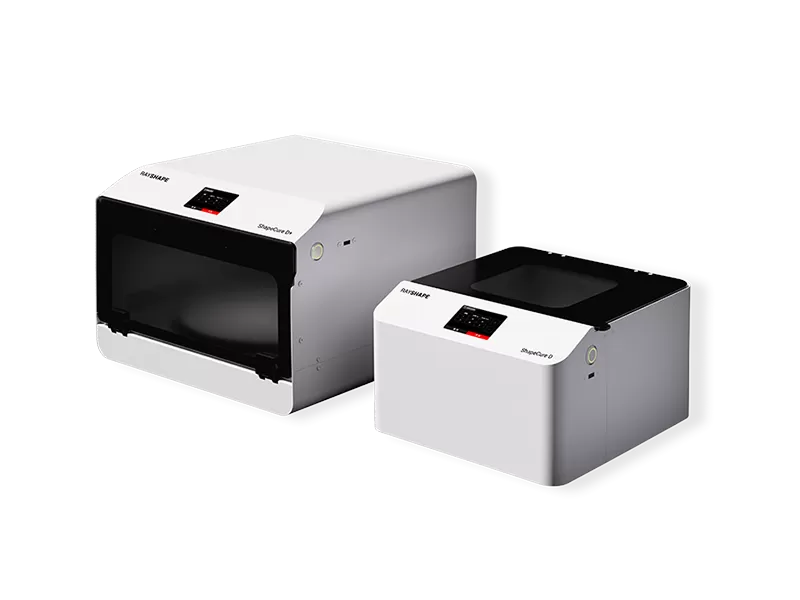

Ultra-fast curing, stable and reliable

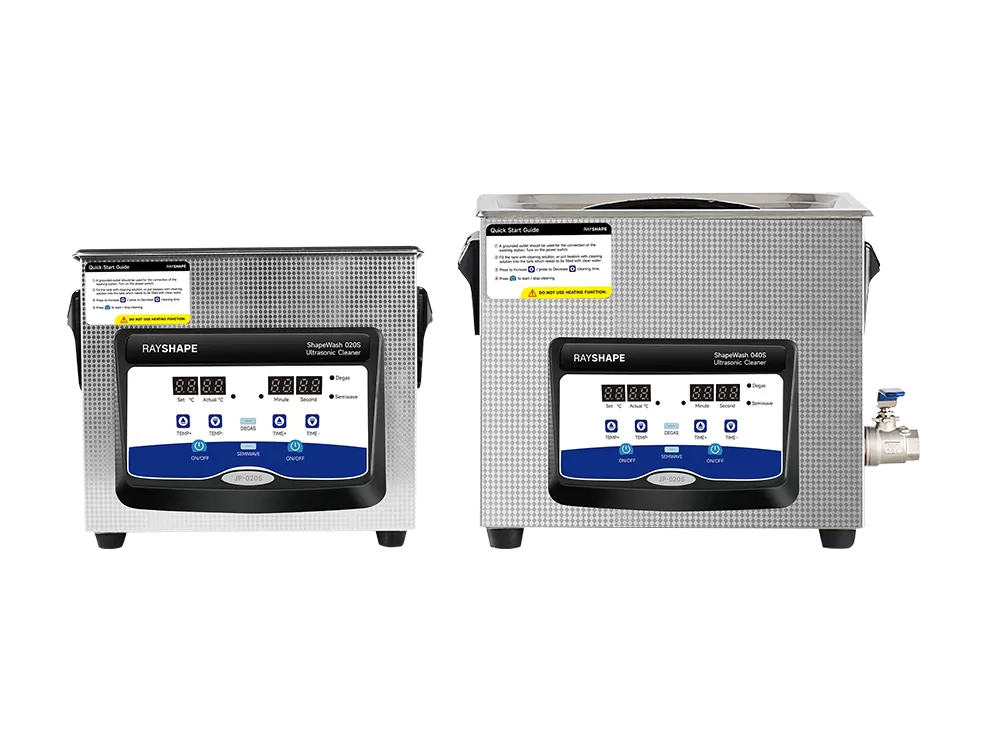

Rapid cleaning, efficient and intelligent
Easy to use, one-touch operation
Over 100 materials are available.
Experience the wide choice of materials on the market with broad access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with recently validated 3D print materials thanks to RAYSHAPE's Open Material Architecture.
