Streamline the medical visit process.
Enhance the patient experience.
High-efficiency printing performance.

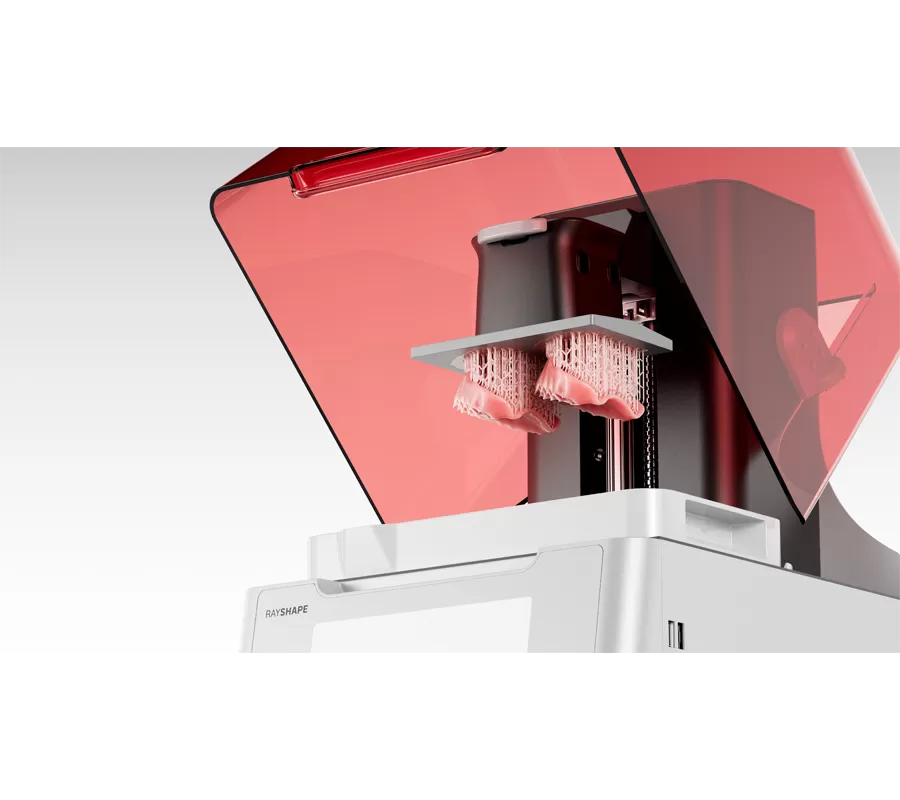

By simplifying the treatment process and enhancing the patient experience, Edge mini brings significant value to medical services. The device's high-efficiency printing capability, precise performance, and user-friendly features reduce patient wait times, minimize the need for multiple visits, and improve overall treatment efficiency and comfort. As ideal dental 3D printing solutions for dental and medical fields, Edge mini helps medical institutions enhance service quality, reduce patient visits, and increase overall satisfaction.
Specializing in the dental field, the Edge mini 3D printer is equipped with industrial-grade high-precision printing technology, delivering high resolution and excellent detail in every output, comparable to professional manufacturing standards.

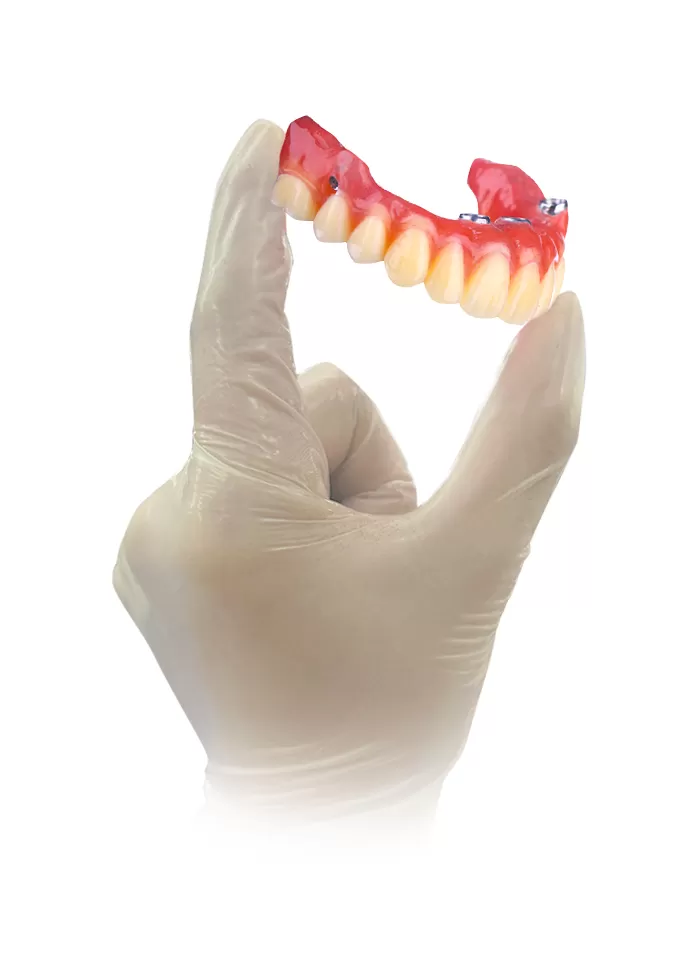

Designed for chairside use, the Edge mini 3D printer offers a comprehensive solution, including surgical guides, occlusal splints, and immediate dentures. Whether it is precise intraoperative positioning, comfortable occlusion, or restoring a patient's aesthetics and function quickly. Edge mini efficiently meets clinical needs and provides an exceptional treatment experience.

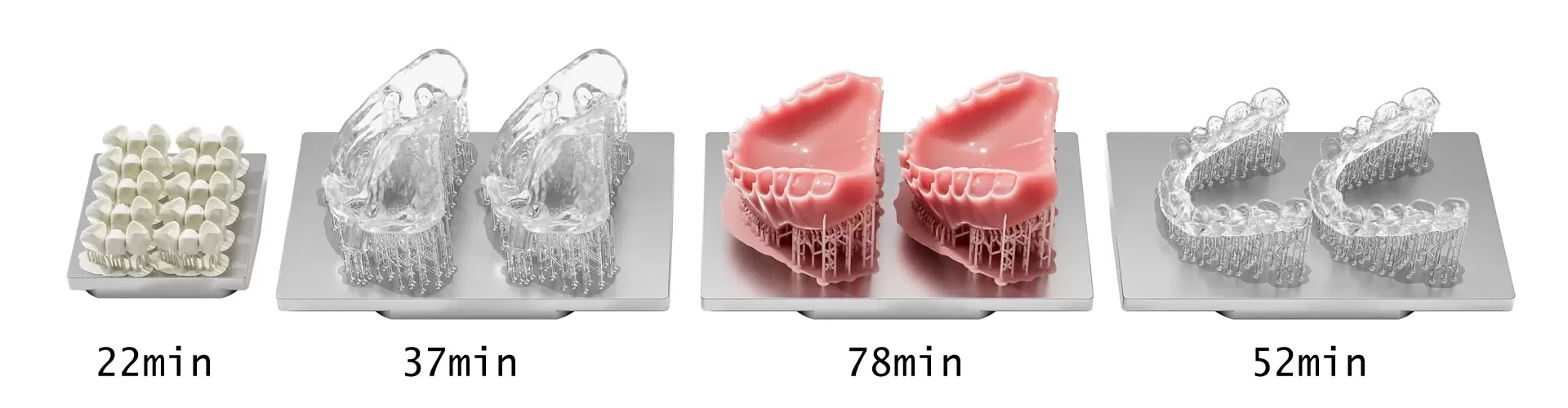

The device integrates a one-stop printing function with sophisticated algorithms to easily handle complex cases. Its intelligent design allows for a complete scan-to-try-in process in just 59 minutes, significantly reducing treatment time.

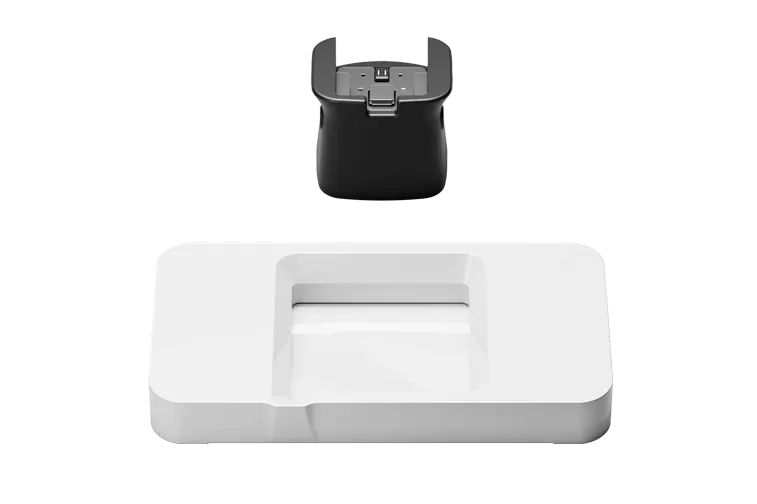

Edge mini 3D Printer features dual platform options: a large platform paired with a high-capacity resin tank, ideal for personalized, high-precision production of items such as clear aligners and complex models, and a small platform with a smaller resin tank, better suited for fine printing needs such as temporary crowns.

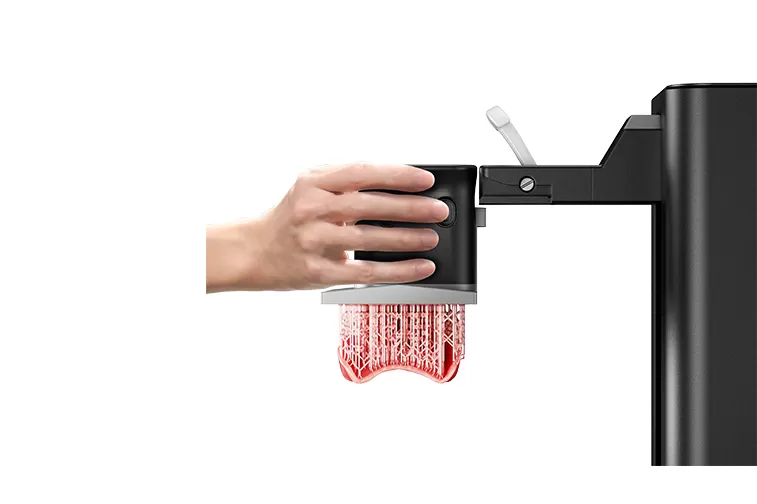

Edge mini 3D Printer adopts a modular structure, with a cover that can be easily opened and closed with one hand for quick operation. The lightweight platform is easy to handle, enhancing user comfort, while the magnetic resin tank is secure and easy to replace, simplifying maintenance. Offering flexible solutions, the device easily adapts to various clinical scenarios, ensuring both efficiency and precision. The platform's quick-change system ensures smooth operation and reduces preparation time, significantly boosting treatment efficiency.

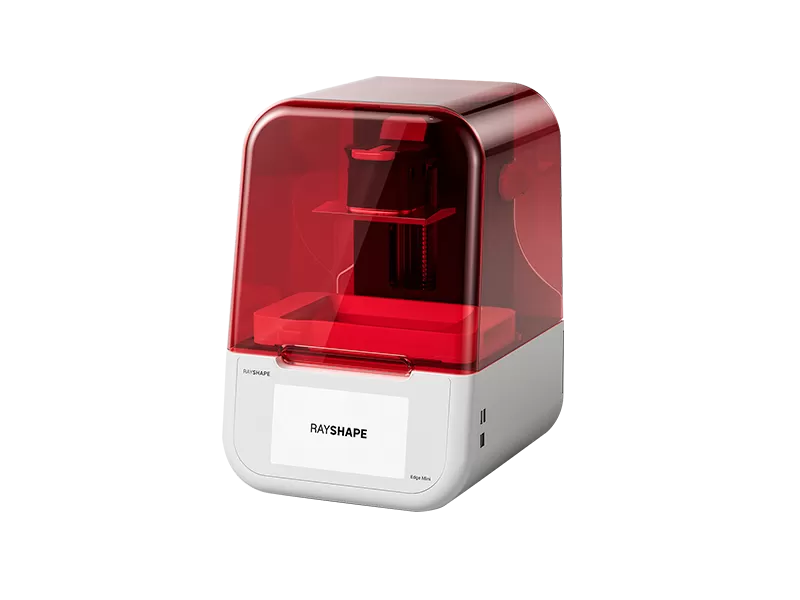

Dental Professional 3D Printer

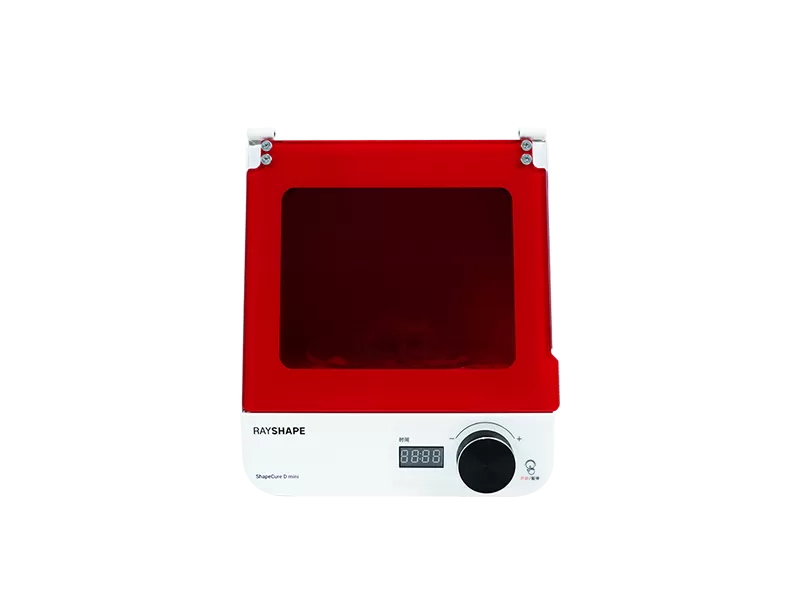

Ultra-fast curing, stable and reliable

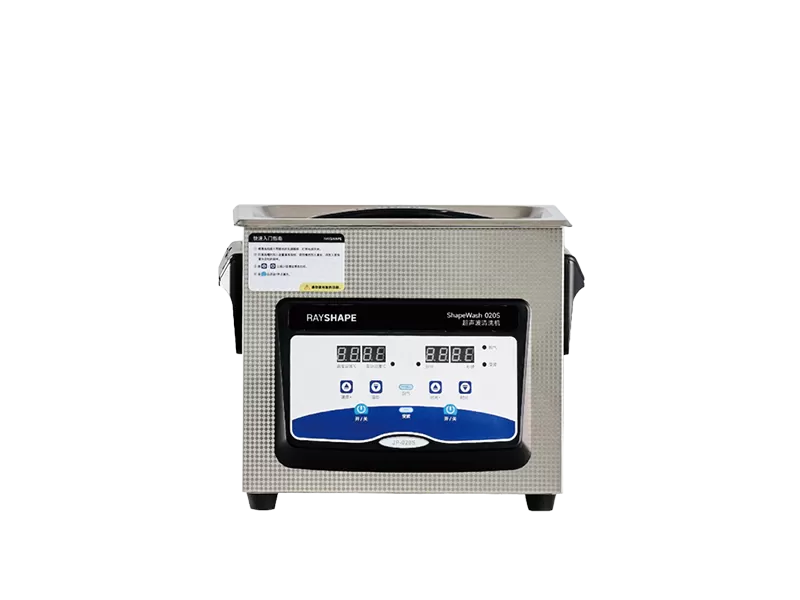

Rapid cleaning, efficient and intelligent
Easy to use, one-touch operation
Edge Mini Dental 3D Printer Specification
| Core Parameters | |
| Build volume | 60 × 60 × 100 mm / 130 × 80 × 100 mm |
| Pixel size | 35 μm |
| Technology | LCD |
| Dynamic layer thickness | 0.05 ~ 0.20 mm |
| Materials | |
| Available materials | ShapeMaterials Dental Series |
| Hardware | |
| LCD Screen | 6.23" 4K monochrome screen |
| Light source | LED light source |
| Wavelength | 405 nm |
| Resolution | 3840 × 2400 pixels |
| Door control | Printing will be paused automatically if the cover is opened(optional) |
| Touchscreen | 7" color touchscreen |
| Connectivity | USB2.0, Wi-Fi(2.4GHz), Ethernet |
| Input | 100~120 VAC，50/60Hz 220~240 VAC，50/60Hz |
| Rated power | 120 W |
| Software | |
| Control System | Self-developed Master O.S. |
| Language | English, Chinese |

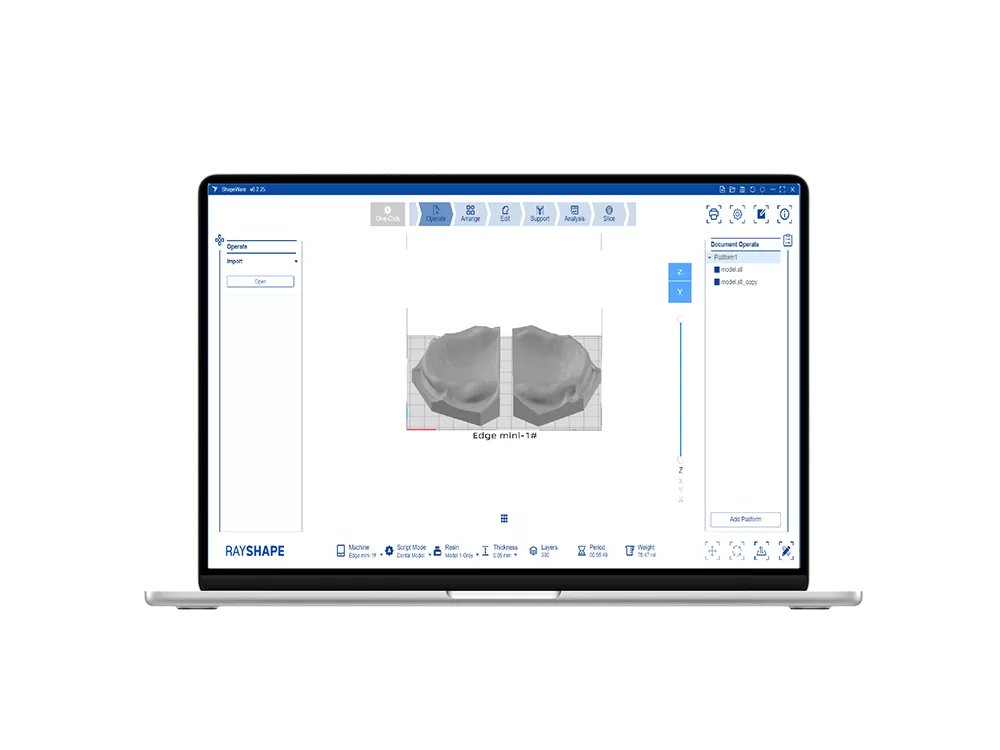

| Slicing software | ShapeWare2.0 |
| Operating system | Windows 10/11 |
| File format (Input) | .stl |
| File format (Output) | .rs, .shape |
| Advanced functions | Support editing, automatic repair, model cutting, hollowing, perforating, labeling |
| Wireless printing | Deliver printing tasks to specified printer in LAN environment via "One Click" operation |
| Cluster management | Manage the printing tasks of multiple devices in LAN environment |
Size & Weight | |
| Device dimension | 300 x 280 x 427 mm |
| Net weight | 12 kg |
| Package size | 385 x 385 x 620 mm |
| Package weight | 17 kg |
Over 100 materials are available.
Experience the wide choice of materials on the market with broad access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with recently validated 3D print materials thanks to RAYSHAPE's Open Material Architecture.
