The ShapeCure series uses multiple LEDs arranged in an array around a turntable that supports the part for higher curing power and efficiency. 360° automatic rotation, refusing dead ends, all-around three-dimensional product drying and curing.
The ShapeCure series has built-in resins such as Basic, Functional, and Advanced, so no matter what kind of printed part model you have, you can achieve final curing in the ShapeCure series.
ShapeCure mini lets you customize the curing time by turning a knob, while ShapeCure and ShapeCure+ allow you to start a final cure by simply tapping the name of the resin on the touch screen.

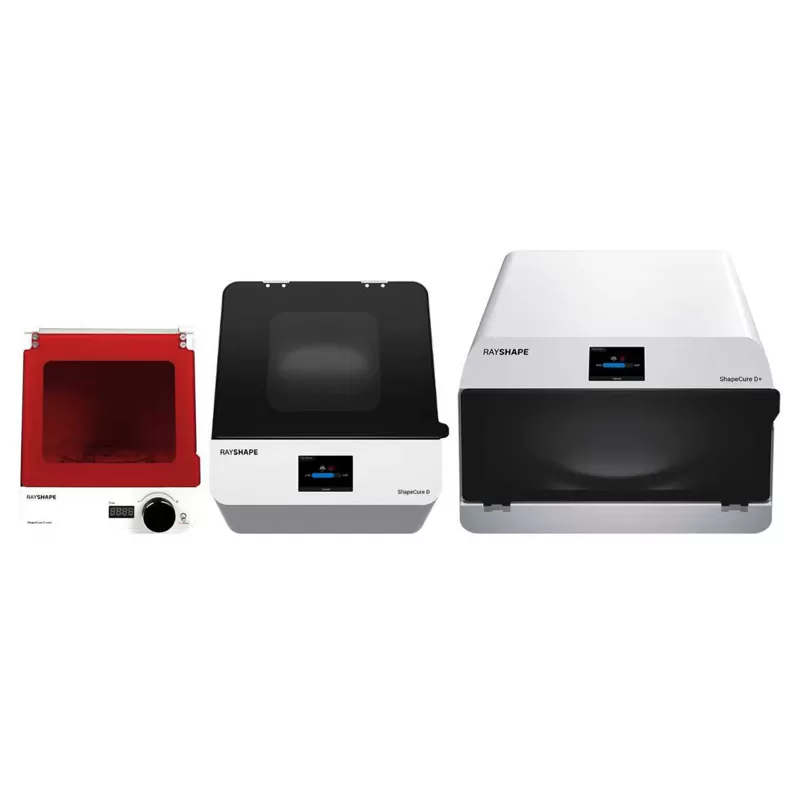

ShapeCure mini is designed for dental models and small precision parts; ShapeCure is for most regular-sized part models; ShapeCure+ is suited for large-volume part models and also for batch curing of small to medium-sized parts.
UV Curing Machine ShapeCure Dental 3D Printers Specification
| ShapeCure Pro |  |
| Main Parameters | |
| Curing volume | 200mm × 300mm Diameter 7.87 × Height 11.81 inches |
| Wavelength of curing light | 405 nm |
| Curing power | 72 W |
| Curing method | Multiple light sources for 360° surround array; Internal reflection |
| Compatible 3D printers | Shape 1 Series / Shape 1+ Series / Shape 1+ Dental / P200 Series / P400 Series |
| Air drying | |
| Heating power | 300 W |
| Working mode | Hot air convection |
| Materials | |
| Available materials | ShapeMaterials All Series |
| Hardware | |
| Control chip | STM 32 ARM chip |
| Operation interface | 3.5'' touchscreen |
| Input | 100~120 VAC, 5A, 50/60Hz 200~240 VAC, 2.5A, 50/60Hz ( Depending on the country/region ) |
| Rated power | Max. 450 W |
| Software | |
| Curing settings | Programable |
| Firmware update | Via U drive |
| Language | English |
| Size and weight | |
| Device size | 340 × 340 × 400 mm |
| Device weight | 12 kg |
| Package size | 420 × 450 × 500 mm |
| Package weight | 14 kg |
| ShapeCure+ |  |
| Main Parameters | |
| Curing volume | 440mm × 400mm Diameter 17.32 × Height 15.74 inches |
| Wavelength of curing light | 365 nm |
| Curing power | 96 W |
| Curing method | Multiple light sources for 360° surround array; Internal reflection |
| Compatible 3D printers | Shape 1 Series / Shape 1+ Series / Shape 1+ Dental / P200 Series / P400 Series |
| Air drying | |
| Heating power | 600 W |
| Working mode | Hot air convection |
| Materials | |
| Available materials | ShapeMaterials All Series |
| Hardware | |
| Control chip | STM 32 ARM chip |
| Operation interface | 3.5'' touchscreen |
| Input | 100~120 VAC, 7A, 50/60Hz 200~240 VAC, 3.5A, 50/60Hz ( Depending on the country/region ) |
| Rated power | Max. 700 W |
| Software | |
| Curing settings | Programable |
| Firmware update | Via U drive |
| Language | English |
| Size and weight | |
| Device size | 720 × 510 × 530 mm |
| Device weight | 26 kg |
| Package size | 770 × 560 × 590 mm |
| Package weight | 30 kg |
Over 100 materials are available.
Experience the wide choice of materials on the market with broad access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with recently validated 3D print materials thanks to RAYSHAPE's Open Material Architecture.
