No Manual Level Checks Needed

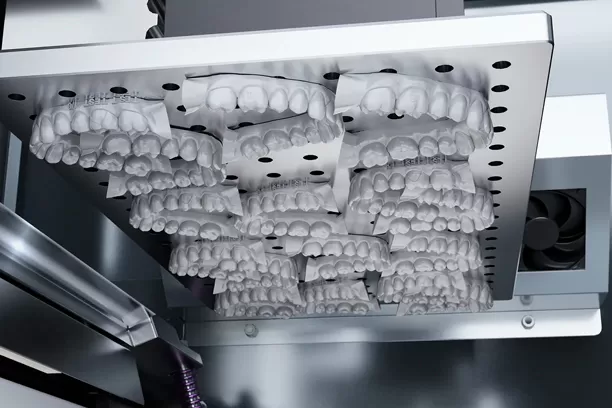

Auto Stripping on Print Completion
6480 x 3600 pixels
46 μm
Reliable Batch to Batch Consistency

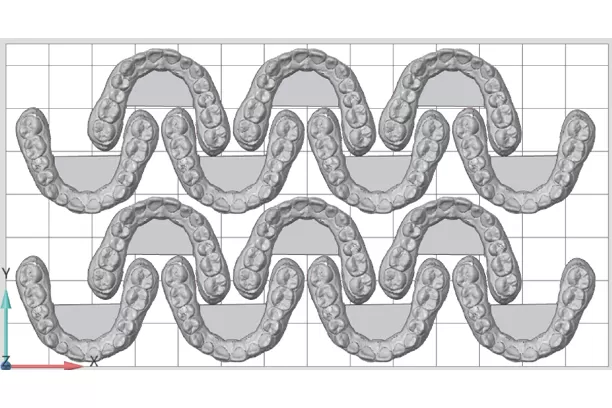

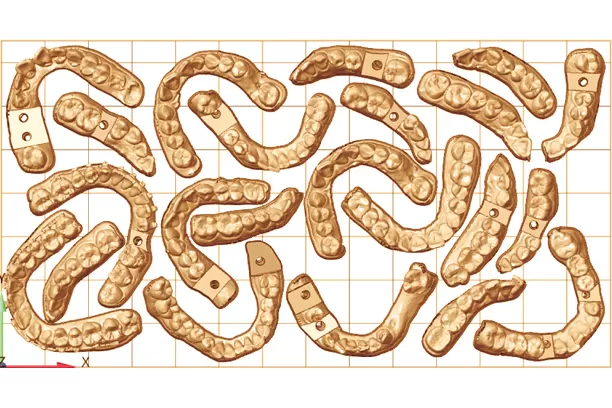

（Up to 11 half-arch and 11 quadrant models per build）
（Up to 14 half-arch models per build）

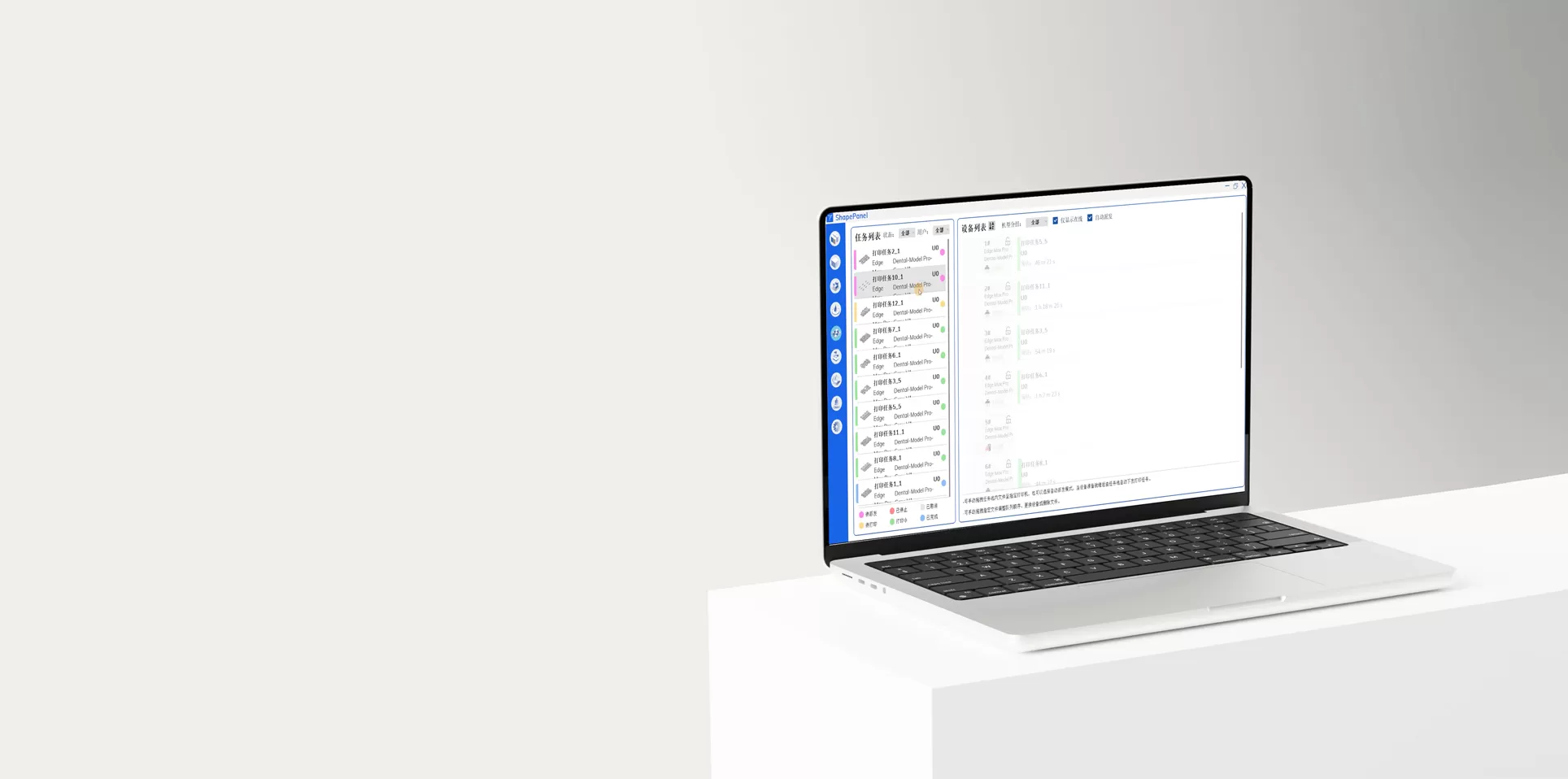

From Hardware to Software: Elevate Dental Lab3D Printing Efficiency
Powered by advanced hardware and ShapePanel 2.0, the Edge Max Pro Ecosystem delivers a seamless end to end pipeline for dental 3D printing - from data processing to finished parts optimizing workflow and throughput.

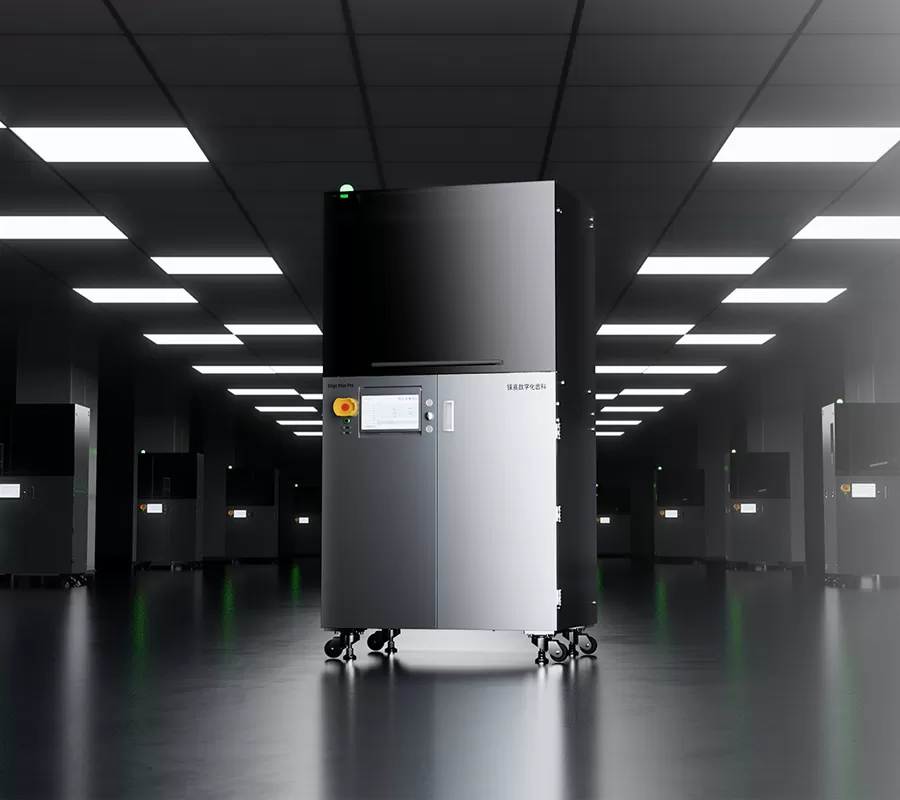

Edge Max Dental 3D Printer Specification
| Core Parameters | |
Build Volume | 280 × 150 × 90 mm |
Pixel Size | 46 μm |
Technology | LCD |
Layer Thickness | 0.05~0.20 mm |
Printing Speed | Up to 40mm/h @0.10 mm ( Depending on the resin type and slicing settings ) |
Materials | |
Available Materials | ShapeMaterials Dental Series |
Hardware | |
LCD Screen | 13.6 Liuguang screen |
Light Source | 405 nm LED |
Resolution | 6480 × 3600 pixels |
Heating module | PTC heating air |
Touch Screen | 10'' color touchscreen |
Connectivity | USB2.0, Wireless network, Ethernet |
Input Voltage | 200~240 VAC ，8.2 A, 50/60 Hz |
Rated Power | 1800 W |
Software | |
Control System | Developed in-house |
Language | English, Chinese |
Slicing Software | ShapePanel 2.0 |
Operating System | Windows 7/8/10/11 |
| File Format(Import) | .stl, .obj |
File Format (Export) | .stl, .obj |
Advanced Functions | One - click slicing, Production Managment, Intelligent Monitoring |
Network Printing | Automated Printing Task Transfer within LAN |
Cluster Management | Task Management and Monitoring for Multiple Devices within the LAN |
Size & Weight | |
Device Dimension | 910 × 735 × 1800 mm |
Net Weight | 230 kg |
Package Size | 1020 × 820 × 1950 mm |
Package Weight | 280 kg |
Over 100 materials are available.
Experience the wide choice of materials on the market with broad access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with recently validated 3D print materials thanks to RAYSHAPE's Open Material Architecture.
